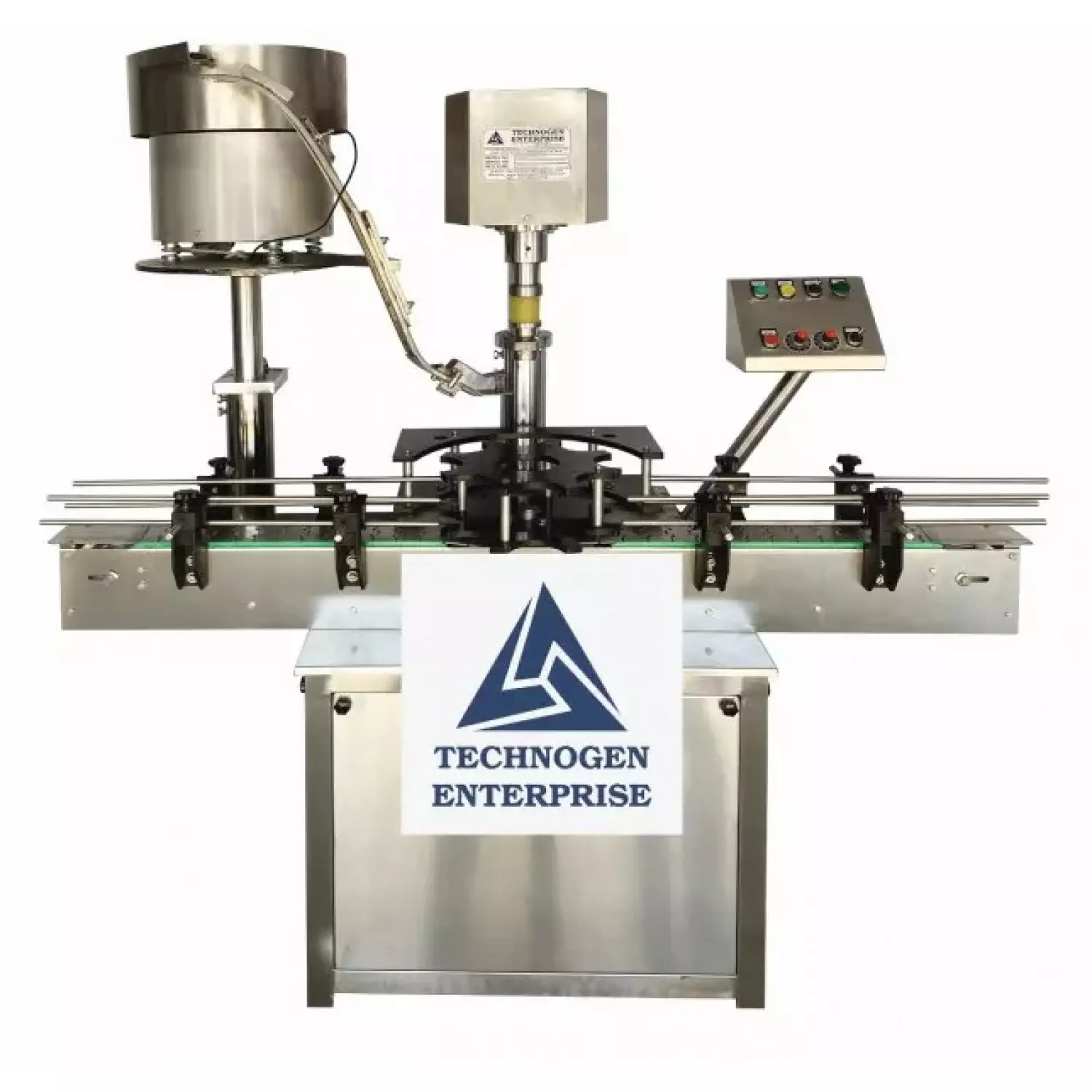

Automatic Single Head Crown Capping Machine – Premium Bottling Automation for Kenya’s Beverage Industry
As Kenya’s beverage industry expands rapidly, especially in urban hubs like Nairobi, Mombasa, Kisumu, Thika, and Eldoret, the need for reliable, high-performance packaging solutions is more important than ever. Technogen Enterprise, a globally recognized manufacturer and exporter, proudly offers the Automatic Single Head Crown Capping Machine (Model TGCROWN-50)—an essential solution for glass, PET, and plastic bottle sealing in breweries, carbonated drink facilities, and sparkling water production units.
Crafted with precision and equipped with cutting-edge technology, this crown corking machine is specifically designed to meet the high-speed, high-accuracy demands of modern packaging lines in Kenya’s dynamic beverage market.
Your Bottling Partner in Kenya: Technogen's Edge
Technogen’s crown capping machine offers unmatched consistency and quality in every seal. Built with premium stainless steel (SS 304) and incorporating a compact, modular design, the machine ensures hygienic, leak-proof, and tamper-evident capping, crucial for beverages such as:
Beer
Carbonated Beverages
Sparkling Mineral Water
Fermented Wines
From Nairobi’s craft breweries to carbonated water plants in Kisumu and winery operations in Nakuru, Technogen’s TGCROWN-50 is the go-to choice for producers seeking performance, durability, and efficiency.
Salient Features: Technologically Advanced and User-Friendly
The TGCROWN-50 is packed with features that ensure top-tier productivity, safety, and ease of operation.
âś… Compact & Modular Design
Ideal for space-conscious facilities in Thika or Nyeri, the machine is engineered for easy installation and integration into existing lines.
âś… SS 304 Construction
Every major component—from the frame to the capping head—is made of stainless steel 304, ensuring corrosion resistance and compliance with global hygiene standards.
âś… Accurate Bottle Handling
Equipped with an exact positive bottle handling mechanism, the system ensures precise positioning before crown corking, eliminating spills and misalignments.
âś… Variable Speed Control
Integrated Variable Frequency Drive (VFD) allows for smooth speed variation depending on bottle type and line requirements.
âś… Efficient Cap Feeding
A vibrator bowl feeder automatically sorts and feeds the crown caps, maintaining uninterrupted operation with minimal manual input.
âś… Quick Changeovers
Change parts allow for fast and tool-free switching between bottle sizes or cap diameters—perfect for multi-product lines.
âś… Synchronised Movement
A single motor synchronizes the conveyor, star wheel, and turret, ensuring fluid bottle movement and seamless crown cap application.
âś… High-Quality Conveyor
The stainless steel slat conveyor ensures steady and clean bottle transport, even at higher speeds.
Built-In Safety & Control Systems
When operating in busy bottling environments, safety and control are paramount. Technogen integrates smart systems for maximum safety and machine longevity.
No Bottle – No Cap System
Automatically halts the capping process if no bottle is detected, saving caps and protecting the crown head.
Emergency Stop System
An accessible emergency button halts all operations instantly during critical situations.
Auto Vibrator ON/OFF
The intelligent system activates or deactivates the cap feeder based on real-time cap demand, saving energy and extending component life.
Star Wheel Safety Clutch
Prevents damage in case of bottle misplacement or machine jam by safely stopping movement.
Integrated Production Counter
A 6-digit counter helps monitor production metrics in real time, improving inventory and process management.
Technical Specifications
| Machine Name | Automatic Single Head Crown Capping Machine |
|---|---|
| Model | TGCROWN-50 |
| Direction of Operation | Left to Right |
| Application | Crown capping for glass, plastic & PET bottles |
| Cap Pickup Type | Shut pick-up (single cam-controlled) |
| Capping Head | Crown corking head |
| Production Speed | 30–40 bottles per minute |
| Speed Control | Variable Frequency Drive (VFD) |
| Machine Finish | Stainless Steel Matt Finish |
| Bottle Diameter Range | 22 mm to 100 mm |
| Bottle Height Range | 55 mm to 150 mm |
| Cap Diameter | 22 mm to 65 mm (change parts required) |
| Cap Height | 15 mm to 18 mm |
| Cap Feeder Type | Vibrator Feeder |
| Power Consumption | 1 HP (main drive), 0.25 HP (cap feeder) |
| Power Supply | 440V, 3 Phase, 50Hz (4-wire system) |
| Control Panel | Bottom Pendant-mounted |
| Conveyor Height | Adjustable 800–850 mm |
| Dimensions (L x W x H) | 1830 x 850 x 1500 mm |
| Machine Weight (Net / Gross) | 250 KG / 450 KG |
| Change Parts | Required for different bottle/cap sizes |
| Country of Origin | Made in India |
Optional Add-On Features
Technogen understands that bottling plants in Kenya need flexibility and future-proof solutions. We offer multiple optional features for enhanced performance:
PLC + HMI Interface
Upgrade to a smart, touch-operated Programmable Logic Controller with Human Machine Interface for easier control, monitoring, and diagnostics.
Automatic Head Up/Down System
Automates head positioning based on bottle height, reducing setup time during product changeovers.
Protective Safety Enclosure
Choose between Toughened Glass, Polycarbonate, or Acrylic Safety Cabinets with interlocks to ensure safe operation and protect moving parts.
Serving Kenya’s Beverage Industry: Where It’s Used
Technogen’s Automatic Crown Capping Machine is in demand across Kenya’s vibrant beverage and alcohol sectors:
Nairobi: Microbreweries and soda plants seeking export-grade packaging
Mombasa: Sparkling mineral water production for regional markets
Kisumu: Wine bottling units requiring airtight, long-shelf-life seals
Thika and Eldoret: Large-scale soft drink facilities integrating automation
Nakuru and Nyeri: Mid-sized producers shifting from manual to automatic lines
Why Choose Technogen for Your Capping Needs in Kenya?
âś… Proven Global Exporter: Trusted by bottlers worldwide for reliability and innovation.
âś… Custom Configurations: Flexible for a wide range of bottle types and cap sizes.
âś… On-Ground Support in Kenya: Installation, servicing, and operator training provided across key cities.
âś… Built to Last: Heavy-duty build ensures long life even in continuous operation environments.
Conclusion: Bring Efficiency, Accuracy, and Quality to Your Bottling Line
Whether you're producing beer in Nairobi, sparkling water in Kisumu, or carbonated beverages in Thika, the Automatic Single Head Crown Capping Machine by Technogen Enterprise is your solution for world-class packaging automation.
Designed to deliver maximum uptime, perfect sealing, and ease of integration, this machine is a must-have for Kenyan businesses ready to scale with confidence.
Get a Quote Today
Upgrade your bottling line with precision crown corking.
Contact Technogen Enterprise now for pricing, demonstrations, or to speak with a local agent.
