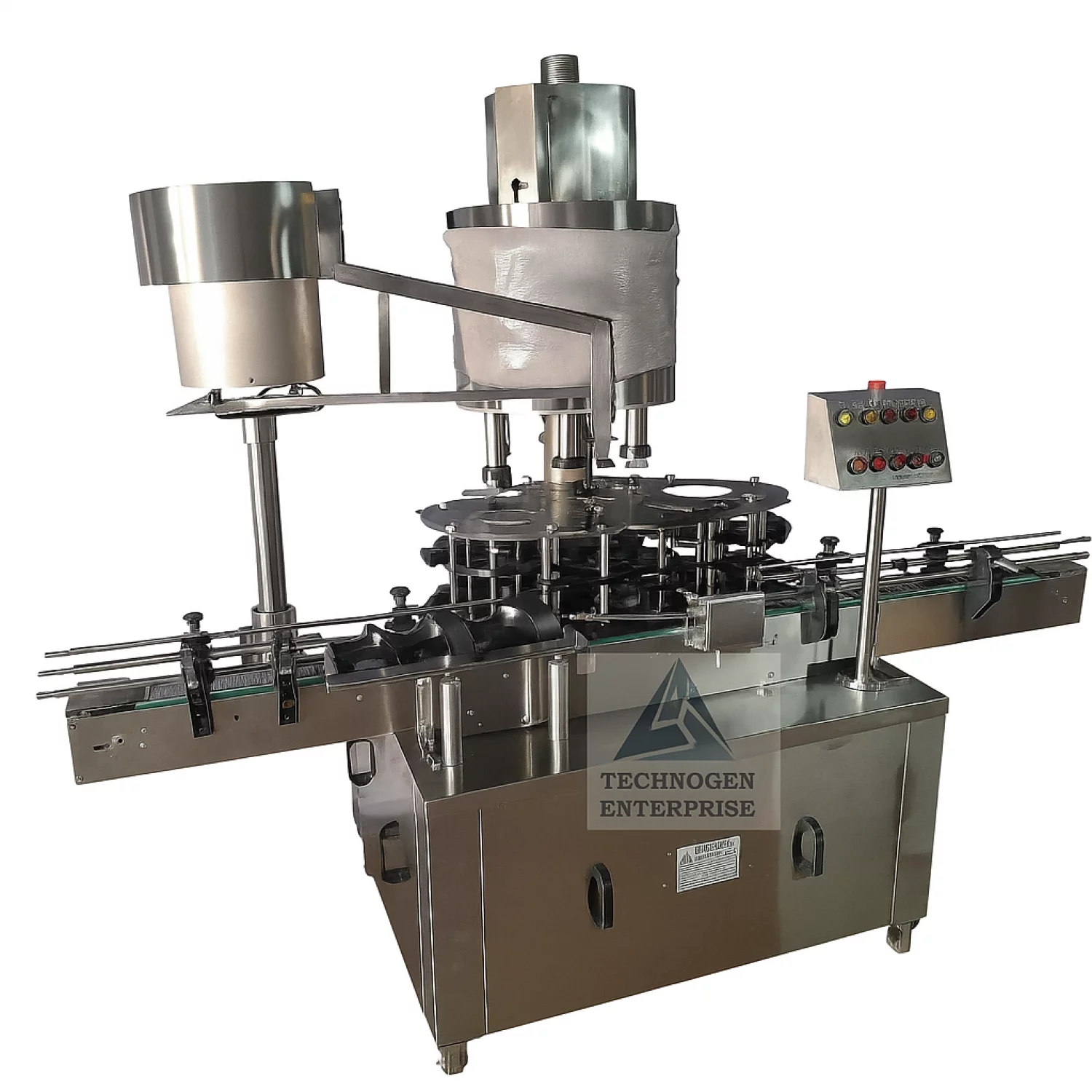

Automatic Rotary Bottle Screw Capping Machine In Kenya

Technogen Enterprise presents the Automatic Rotary Bottle Screw Capping Machine, engineered to meet the high-volume capping needs of industries across Kenya, including pharmaceuticals, cosmetics, food & beverages, lube oils, and pesticides. Designed for superior speed, accuracy, and efficiency, this state-of-the-art capping machine is available in 4-head, 6-head, 8-head, and 12-head configurations, with production speeds ranging from 60 to 200 bottles per minute, depending on the model and bottle size.

Built with CGMP-compliant stainless-steel components, our rotary screw capping machine handles PET, HDPE, LDPE, glass, and plastic bottles—whether round, flat, or square. Its advanced "shut pick-up" mechanism ensures seamless cap placement and tightening, enhancing operational consistency.

Whether you're a Nairobi-based pharmaceutical company, an oil bottling facility in Mombasa, or a food processing unit in Kisumu, this capping machine offers unmatched reliability and adaptability for Kenyan industries.

✅ Applications

The Automatic Rotary Bottle Screw Capping Machine is ideal for:

• Pharmaceutical companies

• Food & beverage processors

• Edible and lube oil manufacturers

• Cosmetics and personal care brands

• Pesticide and chemical producers

• Distilleries and breweries

✅ How It Works

The operation begins as bottles are evenly spaced using a feed worm, then transferred by a star wheel indexing system. As the bottles move through the rotary system, the caps are delivered via vibratory feeder or elevator, channeled down a shute. Each moving bottle picks a cap from the shute and enters a jaw-type capping head that applies and tightens the screw cap with precise mechanical torque.

This efficient, high-speed process is known as a "shut pick-up" mechanism, ensuring optimal torque control and leak-proof sealing.

✅ Key Features

• ✅ CGMP-compliant construction with SS 304 contact parts

• ✅ Shut pick-up mechanism with single-cam control for cap pick and release

• ✅ Rotary continuous motion for high-speed operation

• ✅ Jaw-type screw capping heads with mechanical torque adjustment

• ✅ Single motor system to synchronize star wheels, conveyor, and turret

• ✅ Compatible with glass, PET, HDPE, LDPE, and plastic bottles

• ✅ Available with vibrator bowl feeder, mechanical orientator, or elevator-based cap feeding

• ✅ Maintenance-free operation with minimal downtime

• ✅ Quick changeover system for bottles and caps

• ✅ Integrated safety clutches, emergency stop, and jam detection

• ✅ Adjustable conveyor height (800–850 mm)

✅ Safety Features

• No Bottle – No Cap interlock

• Emergency Stop button to halt operations instantly

• Safety clutches at feed worm and star wheel system

• Auto-stop mechanism in case of bottle jam at outfeed

• Overload protection for critical components

✅ Model Options and Technical Specifications

✅ Customization & Cap Feeding Options

You can choose from the following cap feeding systems based on your application:

• Vibratory Bowl Feeder (ideal for small caps)

• Mechanical Orientator

• Cap Elevator Feeder

All units are configured to handle a wide range of cap sizes and shapes, with tool-less adjustment for minimal changeover time.

✅ Why Choose Technogen Enterprise?

• In-house design and manufacturing at Ahmedabad, India

• Global export-ready with sea-worthy ISPM-15 packaging

• Reliable service and support across Kenya

• Competitive price for industrial-grade performance

• Monthly production capacity: 5 machines/month

• Standard delivery: 4 to 5 weeks

• 1-Year warranty from dispatch date

•  International payment modes: T/T or L/C

✅ Ideal for Kenyan Businesses in:

• Nairobi

• Mombasa

• Kisumu

• Nakuru

• Eldoret

• Thika

• Industrial zones and EPZs
