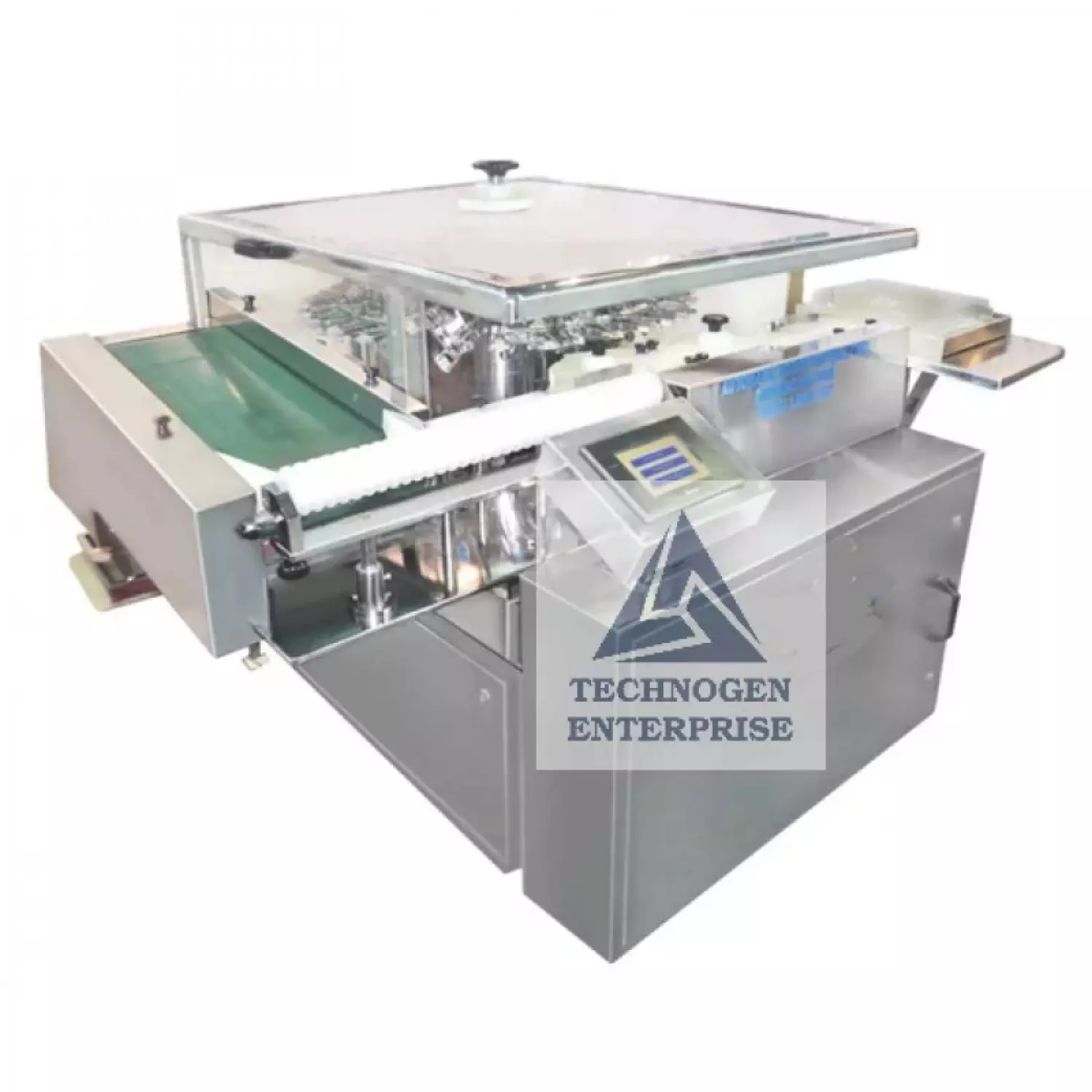

Automatic Rotary Ampoule Washing Machine – CGMP Compliant Solution For Kenyan Pharma
Automatic Rotary Ampoule Washing Machine Details
Revolutionizing Ampoule Washing for Kenya’s Injectable Industry
Technogen Enterprise, a globally trusted manufacturer and exporter, introduces its state-of-the-art Automatic Rotary Ampoule Washing Machine, built for injectable formulation plants across Kenya, Tanzania, Rwanda, and other East African markets. Designed with pharmaceutical CGMP standards, this machine delivers unmatched efficiency, hygiene, and performance.
Whether you're a sterile fill-finish unit in Nairobi, a vaccine production unit in Kisumu, or a contract manufacturer in Mombasa, this machine ensures your ampoules are internally and externally cleaned to international quality standards.
How It Works – Innovative Gripper Rotary System
The machine employs a gripper mechanism that holds each ampoule by the neck, inverts it for complete internal washing, and places it back in an upright position after the cleaning cycle. The washing cycle is executed in a continuous rotary motion, ensuring high throughput and minimal handling risk.
Internally, the ampoules undergo six critical washing operations—three with water (recycled, purified, and WFI) and three with sterile compressed air. Additionally, the outer surface is cleaned with one water spray and one air jet, removing any dust or external residue.
Salient Features
CGMP-Compliant Design – Hygienic construction with a fully visible washing area
Rotary Continuous Motion – For smooth, high-speed operation
Servo or Mechanical Cam-Driven Nozzles – Ensuring precise in-dive wash action
Six Internal Wash Cycles – Recycled water, purified water, WFI, and 3 air blows
Two External Wash Cycles – 1 water wash and 1 air blow for perfect finish
Heated Recycled Water Tank – With temperature sensor & controller
Sterile Air Integration – Clean drying with monitored pressure
Interlocks on Air & Water Pressure – For safety and process control
AISI 316L Contact Parts – Corrosion-resistant and pharma-grade
SS316 Piping with Orbital Welding & Electro Polishing
Vapour Exhaust Blower System – For condensed steam removal
Automatic Tank Draining System (optional)
Transparent Polycarbonate Covers – For visual inspection and safety
PLC with HMI Touchscreen – Easy, programmable machine operation
Technical Specifications
| Parameter | TGAW-120-R | TGAW-240-R |
|---|---|---|
| Output Speed | Up to 120 ampoules/min | Up to 240 ampoules/min |
| Machine Dimensions (L x W x H) | 2130 x 1650 x 1500 mm | 2650 x 1850 x 1550 mm |
| Washing Stations | 15 (each with 3 grippers) | 20 (each with 3 grippers) |
| Direction of Flow | Left to Right | Left to Right |
| Ampoule Diameter Range | 14 mm to 55 mm | 14 mm to 55 mm |
| Ampoule Height Range | 30 mm to 110 mm | 30 mm to 110 mm |
| Neck Sizes | 13 mm, 20 mm, 32 mm | 13 mm, 20 mm, 32 mm |
| Ampoule Sizes Supported | 2 ml to 100 ml | 2 ml to 100 ml |
| Contact Parts Material | AISI 316L | AISI 316L |
| Electrical Supply | 440 V, 3 Phase, 50 Hz | 440 V, 3 Phase, 50 Hz |
| Wash Types | 3 water + 3 air (internal), 1 each (external) | Same |
| Working Height | 900 to 950 mm adjustable | 900 to 950 mm adjustable |
Optional Add-On Features
21 CFR Part 11 Compliance – Regulatory readiness for digital audit trails
Automatic Tank Draining System – With air flushing to prevent stagnation
HMI Trend Logging – For washing parameter traceability
Advanced Water Filtration System – Ensures purity of each rinse
Siliconisation Station (Add-on) – Can be integrated for pre-fill treatment
Ideal for Kenyan Pharmaceutical Facilities
Whether you're serving local Kenyan hospitals, exporting to East African Community (EAC) nations, or supplying WHO prequalified tenders, this automatic rotary ampoule washer guarantees compliance and reliability.
Used widely in:
Injectable & parenteral formulation plants
Biotech vaccine & biologics production
Sterile ampoule packaging lines
Contract manufacturers & exporters in Nairobi, Mombasa, Eldoret, and Thika
Why Choose Technogen Enterprise?
Export-Oriented Quality & Engineering
In-Depth Understanding of Kenyan Market Regulations
Reliable Post-Sales Support with remote guidance and spare part availability
Trusted by Top Kenyan Pharma Brands
Eco-Friendly Washing with Efficient Water Recirculation
Contact Us for Pricing, Customization & Demo
Let us help you streamline your sterile ampoule cleaning process with our CGMP-compliant Automatic Rotary Ampoule Washing Machine.
Related Products

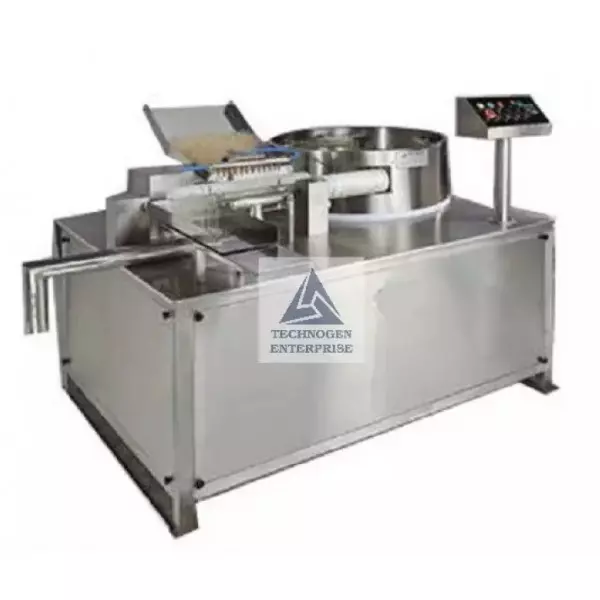

Automatic External Ampoule Washing Machine
