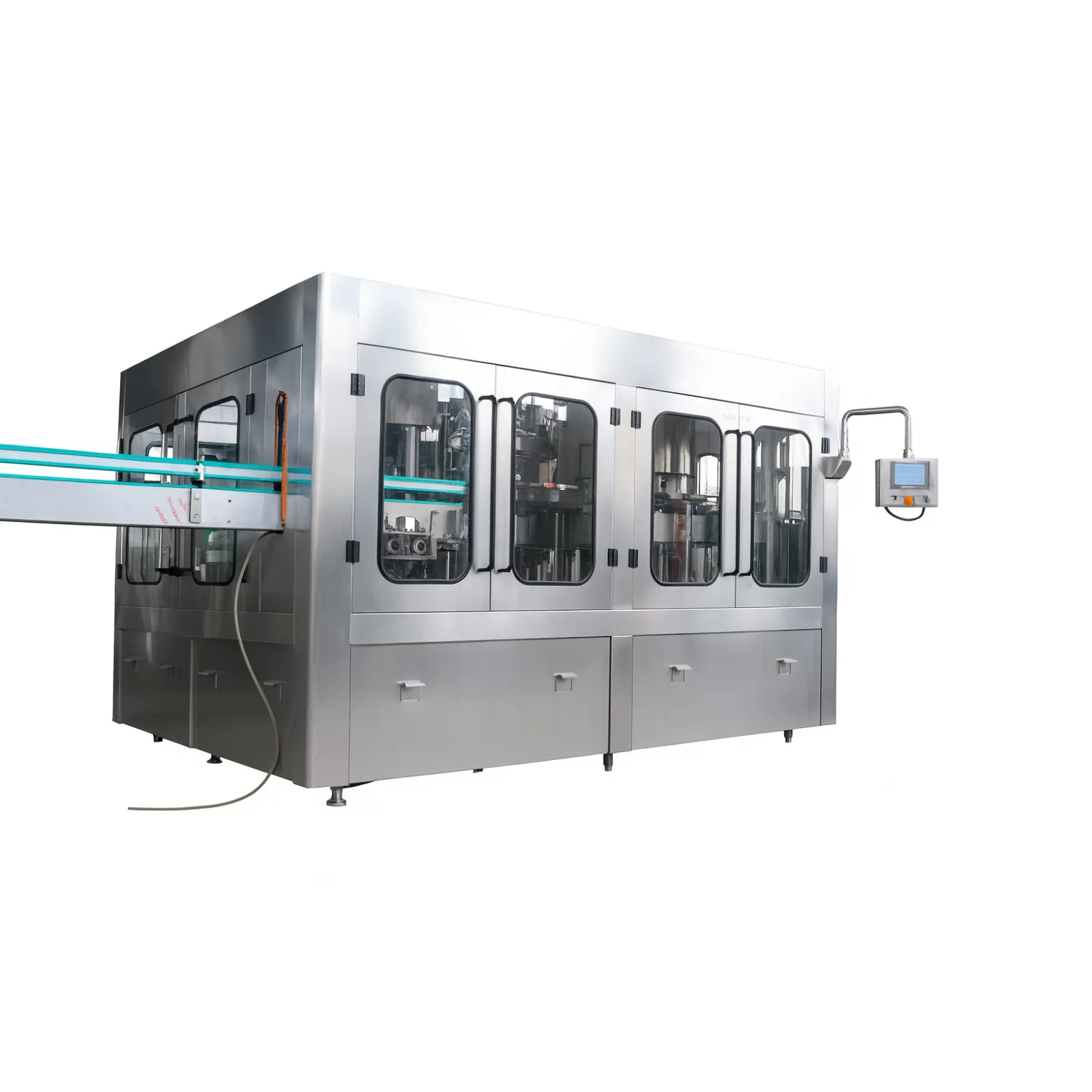

Technogen Enterprise proudly presents its Automatic RFC Isobaric Carbonated Beverage Filling Machine, a performance-driven monoblock engineered for uninterrupted bottling of highly carbonated beverages in 100 ml to 1000 ml glass bottles. Built for superior consistency, long-term reliability and international manufacturing standards, this machine delivers an exceptional advantage for beverage producers across Nairobi, Mombasa, Nakuru, Eldoret, Thika, Kisumu, Naivasha, Ruiru, and other major industrial hubs in Kenya.

Designed with advanced counter-pressure technology, the RFC Isobaric Carbonated Beverage Filling Machine integrates Rinsing, Isobaric Filling and Capping in a compact, robust and sanitary configuration. Beverage manufacturers can choose between Crown Capping or ROPP Aluminium Capping, depending on product category and bottle design.

As Kenya’s carbonated drinks market continues to expand across sectors such as soft drinks, craft beverages, sparkling water, beer, tonic beverages and flavoured CSDs, Technogen Enterprise positions this machine as a complete, export-grade solution that aligns with the latest packaging requirements of Kenyan beverage companies.

Overview of the Machine

The Automatic RFC Isobaric Carbonated Beverage Filling Machine is specially engineered for products where carbonation control, hygiene and sealing precision are crucial. This solution is ideal for a wide variety of carbonated beverages, including:

• Carbonated soft drinks
• Soda and aerated beverages
• Juice-based sparkling drinks
• Beer, craft beer and malt beverages
• Tonic water
• Sparkling functional drinks
• Carbonated energy drinks

Carbonated beverages require special care during filling due to the volatility and sensitivity of dissolved CO₂. The machine efficiently handles these challenges by enabling:

• Low turbulent filling
• Zero oxygen exposure
• Consistent CO₂ retention
• Stable headspace control
• Uniform liquid levels

Built with a sturdy stainless-steel foundation, precision valves and closed-loop control systems, the RFC monoblock offers beverage plants in Kenya a dependable platform for maintaining carbonation stability and product quality.

With its engineered balance of mechanical and automated systems, the machine delivers consistent results for high-volume production, making it well-suited for bottling operations in industrial regions such as Nairobi Industrial Area, Athi River, Mombasa EPZ, Kisumu Industrial Park, and Thika’s manufacturing belt.

Machine Design & Construction

Manufactured with precision engineering principles, the RFC monoblock features a high-strength frame and SS304 / SS316L food-grade contact parts. Every component is selected for durability, sanitation and ease of maintenance. The structure supports continuous production even in demanding beverage environments.

Key construction highlights include:

• Rotary rinsing turret with stable neck-holding grippers
• Counter-pressure filling bowl engineered for carbonation accuracy
• ULTRA mechanical isobaric filling valves for smooth liquid entry
• Synchronized star-wheel driven bottle transfer system
• Option of crown capper or ROPP aluminium capper
• Full stainless-steel guarding with interlock safety doors
• PLC + HMI driven automated controls with diagnostics

Every surface is designed to be easy to clean, resistant to corrosion and compliant with global beverage packaging norms. For Kenyan beverage brands aiming for export-ready packaging and GMP compliance, the machine's hygienic construction supports these goals effectively.

Working Process

The Automatic RFC Isobaric Carbonated Beverage Filling Machine performs three harmonized operations: Rinsing, Isobaric Filling, and Capping. The entire procedure is automated to ensure continuous flow, minimal handling and consistent output.

1. Rinsing Section

Glass bottles entering the machine are thoroughly cleaned before filling. The rinsing system includes:

• Neck-handling grippers for stable bottle inversion
• Stainless-steel spray nozzles for precise rinsing
• Water rinsing or sterile air rinsing based on requirement
• Efficient draining mechanism
• “No Bottle – No Rinse” system to reduce wastage

This ensures bottles are free from dust, particles and contaminants, which is especially important in warm climates like Nairobi, Mombasa and Kisumu, where airborne dust levels may increase.

2. Isobaric Filling (Counter-Pressure System)

Isobaric filling is essential for all carbonated drinks, and this machine performs it with exceptional accuracy.

Key Features of the Filling System

• ULTRA 2-step mechanical isobaric filling valves
• CO₂ pressurization for bottle conditioning
• Pre-evacuation system to remove oxygen
• Long-tube filling for reduced foaming
• Pressure equalization for stable filling
• Gentle snift release to adjust final pressure
• Consistent fill volume control

How the Process Works

1. Bottles are lifted against the filling valve to create a hermetic seal.

2. Air inside the bottle is evacuated to reduce oxygen levels.

3. CO₂ is injected to match bottle pressure with tank pressure.

4. Liquid flows smoothly down the filling tube under counter-pressure.

5. Turbulence is minimized to prevent CO₂ loss.

6. A controlled snift valve ensures accurate headspace.

Benefits of the Isobaric System

• Preserves carbonation integrity
• Prevents unwanted foam formation
• Maintains flavour stability
• Enhances beverage shelf life
• Ensures accurate and repeatable fill levels
• Minimizes oxidation

This filling approach is primarily valued by beverage companies in Kenya producing soda, juice-based sparkling beverages, premium soft drinks, craft beer and tonic water.

3. Capping Section (Crown or ROPP)

The machine can be customized with either Crown Capping or ROPP Aluminium Capping depending on product requirements.

Crown Capping

• Suitable for soda, beer, malt beverages and sparkling drinks
• Compatible with 26 mm and 29 mm crown caps
• Magnetic capping heads for uniform sealing
• Ensures tamper-proof, airtight closure

ROPP Aluminium Capping

• Ideal for tonic water, premium sparkling drinks and speciality beverages
• Adjustable knurling rollers
• Guarantees strong, leak-free seal
• Designed for consistent performance on glass bottles

The capping turret precisely synchronizes with the filler to avoid spillage, bottle damage or sealing failure.

Salient Features

• Fully automatic rotary RFC monoblock
• Suitable for 100 ml – 1000 ml glass bottles
• Choice of crown cap or ROPP aluminium cap
• High-grade stainless-steel frame and product contact parts
• ULTRA isobaric valve technology for accurate carbonation retention
• Smooth bottle transfer using star wheels
• PLC + HMI-based controls with detailed diagnostics
• CIP-friendly filling bowl and pipe connections
• Controlled CO₂ pressurization system
• Low foaming and highly accurate fill levels
• Reduced production downtime
• Safety doors with electrical interlocks
• Energy-efficient motors and drive systems

Technical Highlights

• Counter-pressure isobaric filling system
• High-pressure rinsing nozzles
• Precise liquid level control with vent tube mechanisms
• Pressurized stainless-steel filling tank
• Anti-rotation bottle holding for accurate capping
• Optional cap absence rejection system
• Optional hot water spray tunnel at the outlet
• Synchronized rinsing, filling and capping operations

These features ensure a smooth production flow for beverage facilities in Nairobi, Thika, Eldoret, and Mombasa, enabling high daily output while maintaining quality.

Machine Advantages

• Ensures carbonation stability throughout filling
• Precise and uniform bottle fills
• Minimal operator intervention required
• Quick bottle size changeover
• Highly durable stainless-steel fabrication
• Low operating cost and low maintenance
• Trusted in high-speed bottling lines
• Ideal for soda, beer, energy drinks and sparkling beverages

Applications

The RFC Isobaric Carbonated Beverage Filling Machine is ideal for:

• Soda manufacturing units
• Breweries and microbreweries
• Carbonated soft drink plants
• Sparkling fruit drink producers
• Tonic water production
• Energy drink bottling units
• Contract bottling facilities

Its compatibility with multiple glass bottle sizes (100 ml – 1000 ml) provides flexibility for Kenya’s diverse beverage market.

Technical Specifications (Table Form Only)

Automatic RFC Isobaric Carbonated Beverage Filling Machine – Specifications

Why Choose Technogen Enterprise?

Technogen Enterprise continues to be a trusted name in packaging machinery across global beverage industries. For Kenyan beverage companies, the following advantages stand out:

• Precision-engineered carbonation filling systems
• Strong export readiness and robust build quality
• Skilled stainless-steel fabrication expertise
• Excellent after-sales support and service
• Competitive pricing with premium engineering
• Custom configurations tailored to specific bottle formats
• Rapid installation assistance and commissioning

Technogen Enterprise supports beverage brands aiming for consistent product quality, international hygiene compliance and high-speed bottling performance.

Frequently Asked Questions (FAQs)

Q1: Can the machine support both crown and ROPP capping?
Yes. Customers can select either capping system based on bottle type and product category.

Q2: What bottle sizes does the machine support?
It is compatible with glass bottles ranging from 100 ml to 1000 ml.

Q3: Is the machine suitable for bottling beer?
Yes. The isobaric counter-pressure technology is ideal for beer and craft beverages.

Q4: Does the system maintain carbonation levels?
Yes. The filling technology is engineered to retain CO₂ throughout the filling cycle.

Q5: What is the production output?
Between 2,000 to 9,000 bottles per hour depending on the number of heads.
