Automatic Double Head Auger Powder Filling Machine In Kenya
Automatic Double Head Auger Powder Filling Machine Details
High-Speed Double Head Auger Powder Filling Machine for Kenya’s Growing Industries

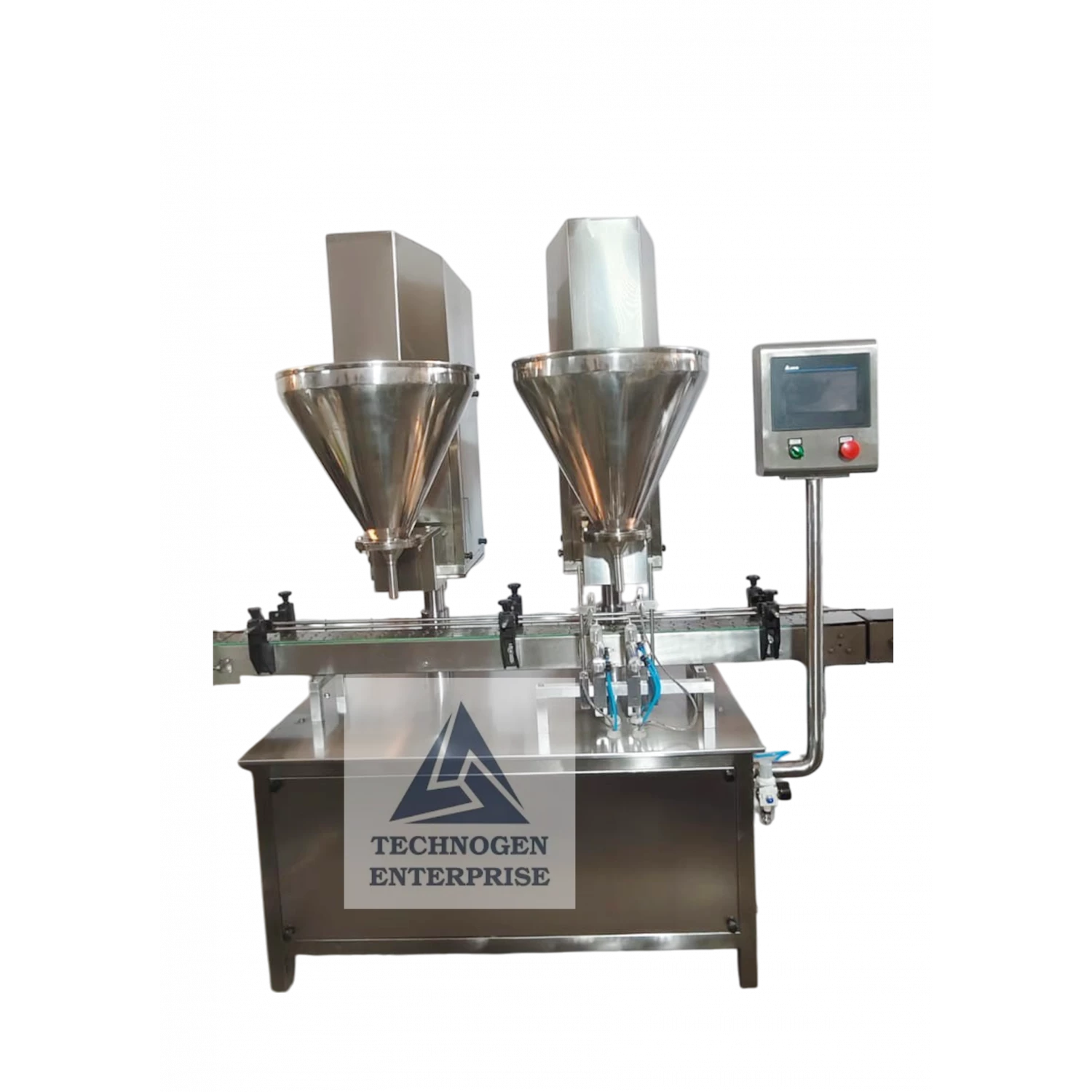

Technogen Enterprise introduces its state-of-the-art Automatic Double Head Auger Powder Filling Machine (Model TGAPF-60) – an advanced solution for businesses seeking high-speed, reliable, and precise powder filling automation. Specifically engineered to support Kenya’s manufacturing hubs, including Nairobi, Mombasa, Thika, Kisumu, Nakuru, and Eldoret, this machine is ideal for large-scale production environments where efficiency and precision are non-negotiable.
With a filling capacity of 60 bottles per minute and a range between 5 grams to 1000 grams, this servo-controlled system is designed for speed, flexibility, and hygiene – all in compliance with GMP standards.
A Perfect Match for Kenya’s Dynamic Industrial Sector
Kenya’s industries are growing fast, with local manufacturers demanding reliable, high-capacity machinery. Whether you're processing pharmaceutical powders in Nairobi, protein supplements in Mombasa, or agrochemicals in Thika, this automatic double head auger filler will help scale your operations and reduce your production costs.
At Technogen Enterprise, we understand the nuances of powder filling and offer tailored solutions that are durable, export-ready, and optimized for the African manufacturing environment.
Key Advantages of TGAPF-60 Powder Filler
| Feature | Benefit |
|---|---|
| Double Head System | Increased production speed (up to 60 BPM) |
| Dual Hopper | Parallel filling for enhanced efficiency |
| Servo Motor Control | High precision & repeatable fill weights |
| GMP Design | Compliance with pharma and food safety regulations |
| Stainless Steel 316L Contact Parts | Superior hygiene and corrosion resistance |
| No Bottle–No Fill Mechanism | Prevents product wastage |
| PLC & HMI Interface | Easy-to-operate touchscreen control |
| Drip Control System | Clean, mess-free filling |
| Quick Changeover | Minimal downtime between batches |
| Energy Efficient | Reduced air utility usage with star wheel indexing |
Where It Fits Best – Kenya’s Leading Industries
1. Pharmaceuticals & Nutraceuticals
Nairobi’s pharmaceutical sector demands precision and hygiene. The TGAPF-60 ensures dust-free, accurate dosing of antibiotics, herbal powders, and nutraceutical blends.
2. Food & Beverage
Whether it’s protein powder in Mombasa or spice blends in Nakuru, this machine maintains product consistency and prevents contamination.
3. Agrochemicals
Manufacturers in Thika and Eldoret can fill pesticides, fertilizers, and micronutrient powders safely, thanks to the drip-free and no-waste mechanism.
4. Cosmetics
For talcum powder and powdered facial products, the TGAPF-60 ensures efficient filling with excellent repeatability and hygiene standards.
Salient Features of the TGAPF-60
✅ CGMP Compliant Construction
✅ Compact & Ergonomic Design
✅ Servo-Controlled Auger System
✅ Dual Filling Heads with Independent Control
✅ Quick Bottle Indexing via Star Wheel
✅ ±2.0% Filling Accuracy (Product Dependent)
✅ Drip Control Post-Filling
✅ Virtually Zero Product Loss
✅ No Bottle–No Fill Mechanism
✅ Minimal Change Parts Required
✅ Simple Maintenance with Accessible Parts
✅ AISI 316L Contact Parts for All Powder Touchpoints
✅ AISI 304 Machine Frame with Mild Steel Top Plate Cladding
Technical Specifications
| Specification | Details |
|---|---|
| Model | TGAPF-60 |
| Machine Name | Automatic Double Head Auger Powder Filling Machine |
| Filling Heads | 2 Nos. |
| Number of Hoppers | 2 Nos. |
| Machine Direction | Left to Right |
| Production Speed | 50–60 Bottles/Minute |
| Filling Range | 5g to 1000g |
| Filling Accuracy | ±2.0% (Based on powder properties) |
| Bottle Diameter | 25mm to 80mm Max. |
| Hopper Capacity | 18 Liters Each |
| Filling Technology | Servo-Based Auger Screw |
| Control System | PLC with HMI |
| Speed Control | Via Variable Frequency Drive |
| Power Consumption | 1 KW |
| Power Requirement | 440VAC, 50Hz, 3PH + N |
| Noise Level | <70 dB |
| Net/Gross Weight | 375 Kg / 600 Kg |
| Dimensions (L × W × H) | 2130 mm × 850 mm × 1600 mm |
| Warranty | 1 Year from Dispatch Date |
Optional Add-Ons
Dust Extraction System: Improve cleanliness in dusty environments
Acrylic Safety Cabinet: For operator protection and GMP compliance
Non-Free Flow Powder Feeding System: For cohesive or sticky powders
PLC–HMI with Audit Trail: For data-logging and regulatory audits
Built to Serve Kenyan Manufacturers
Kenya’s push toward automation in packaging aligns perfectly with the benefits of this machine. The TGAPF-60 supports:
Scalable Production: Whether you’re a growing SME or an established enterprise
Cross-Industry Use: Adaptable to different product types and fill sizes
Power Stability: Built for long shifts even with power fluctuations
Export Packaging: For manufacturers targeting East African exports
Industries & Cities Benefiting Most
| City | Primary Industry Focus |
|---|---|
| Nairobi | Pharmaceuticals, Nutraceuticals, Cosmetics |
| Mombasa | Spices, Tea Powders, Nutrient Mixes |
| Thika | Agrochemicals, Food Powders |
| Eldoret | Dairy Powders, Animal Supplements |
| Kisumu | Herbal Powders, Local Pharma |
| Nakuru | Industrial Chemicals, Processed Foods |
Compliance and Documentation
Each TGAPF-60 is delivered with:
✅ IQ/OQ/DQ Documentation
✅ Operational & Maintenance Manuals
✅ CE Marking (Electrical Safety)
✅ Spare Parts Kit (Optional)
✅ Remote/On-site Installation Support
Why Choose Technogen Enterprise for Kenya?
Technogen Enterprise is an established name in powder filling solutions with a reputation for quality, reliability, and customer support. As India’s leading exporter of auger filler systems, we understand what Kenyan manufacturers need:
✅ Fast response
✅ Flexible pricing
✅ Ready stock of spares
✅ Remote & local technical support
✅ Customization on request
Ordering & Shipping
Dispatch Time: 4–6 Weeks (depending on customization)
Packaging: Export-grade wooden crate
Shipping From: Mundra or Mumbai Port, India
Installation: On-site installation support available in Kenya
