Automatic Bottle Foil Sealing Machine – High-Speed Sealing Solution For Kenyan Industries
Automatic Bottle Aluminum Foil Sealing Machine Details
High-Performance Automatic Bottle Aluminum Foil Sealing Machine Now Available in Kenya
Technogen Enterprise, a leading manufacturer and exporter based in Ahmedabad, India, proudly presents the Automatic Bottle Aluminum Foil Sealing Machine – a cutting-edge sealing solution now tailored for the Kenyan packaging and manufacturing sector. This machine is engineered for high-efficiency operations, making it an ideal choice for businesses across Nairobi, Mombasa, Kisumu, Thika, Eldoret, and other industrial cities in Kenya.
Designed to heat seal aluminum foil onto bottles and jars prior to capping, the machine enhances product protection, prevents leakage, and ensures contaminant-free packaging. It is a versatile solution for industries such as Food & Beverage, Pharmaceuticals, Pesticides, Cosmetics, and Chemical manufacturing.
Built for Speed, Safety, and Quality

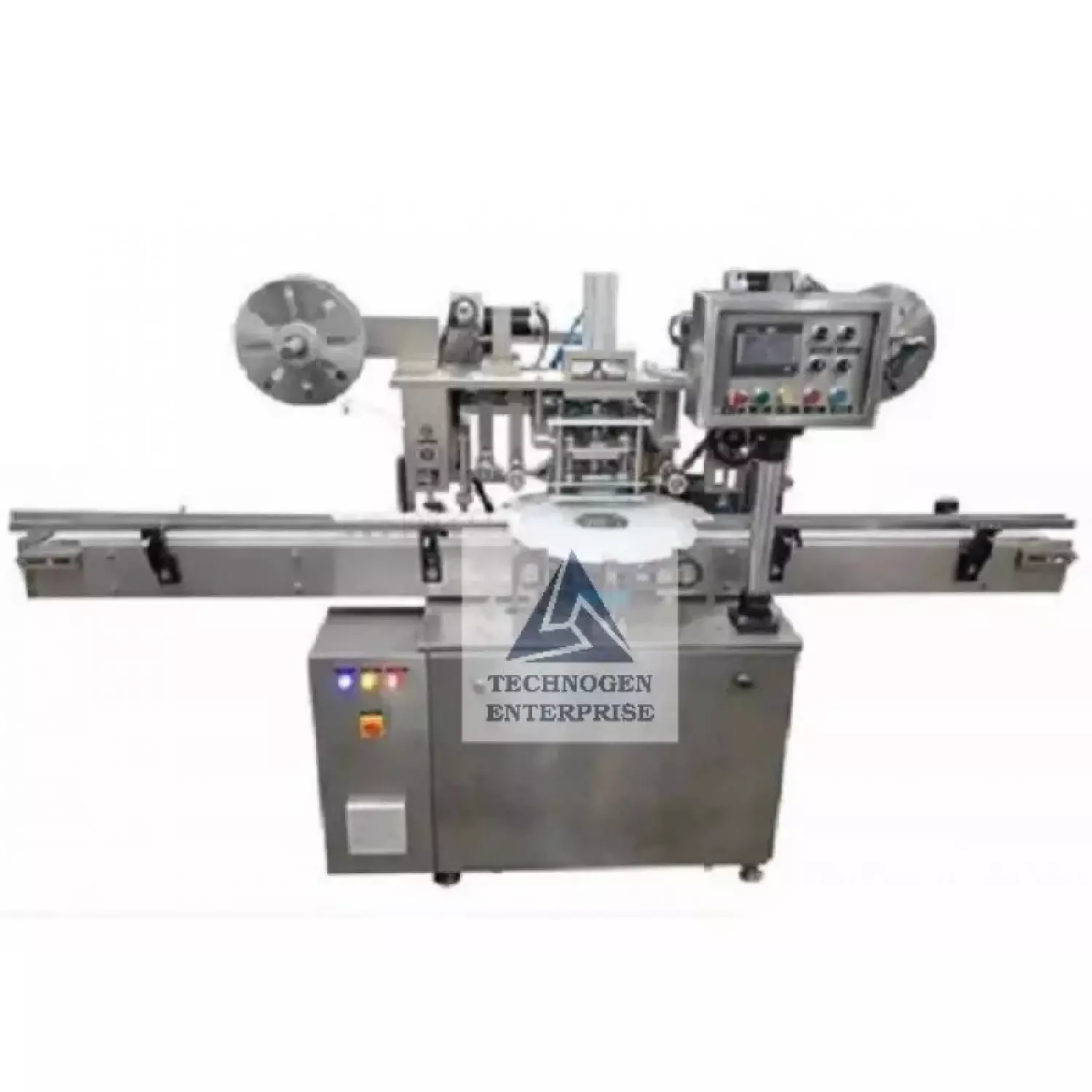

The TGBAFS-60 model is a fully automatic, CGMP-compliant machine, constructed using high-grade stainless steel and built with international-standard components such as:
PLC (Programmable Logic Controller)
7-inch Color Touchscreen HMI
Variable Frequency Drive (VFD)
Pin-type heaters
Precision temperature control system
These components ensure precise operation, minimal human intervention, and consistent sealing quality — a must-have for Kenyan manufacturers aiming for export-grade product packaging.
Top Features of the Automatic Foil Sealing Machine
✅ Compact & Modular Design
Designed for space efficiency, the modular construction allows easy integration into existing lines or standalone use in both online and offline configurations.
✅ CGMP-Compliant Construction (AISI 304)
All contact parts are made from AISI 304 stainless steel, offering hygienic sealing conditions, corrosion resistance, and long-lasting durability.
✅ Advanced Sealing Technology – Conduction Sealing
Our conduction-based heating mechanism ensures airtight, tamper-evident sealing, keeping your product safe throughout transport and storage.
✅ High Output Efficiency
Capable of sealing 50 to 60 bottles per minute, depending on bottle diameter – ideal for high-volume operations in Nairobi Industrial Area, Ruaraka, or Athi River EPZ.
✅ Precise Temperature Control
Equipped with a precise temperature control module to deliver uniform heat distribution across each foil, resulting in consistent sealing.
✅ User-Friendly Touch Interface
The 7-inch True Color HMI makes machine setup and monitoring intuitive. Operators can easily adjust parameters, monitor faults, and manage output.
✅ No Bottle–No Foil Function
Smart sensor-based system that minimizes waste and boosts productivity by preventing foil release unless a bottle is present.
Salient Features That Set Us Apart
| Feature | Description |
|---|---|
| Safety Clutch Device | Prevents damage during jams; disengages operation safely at the star wheel. |
| Separate Gearbox & Motor System | Independent speed/torque control for the main unit and conveyor. |
| Foil Winding/Unwinding Unit | Ensures smooth, precise foil feed during continuous operation. |
| Uniform Sealing & Cutting | Guarantees consistent seals for better product presentation & security. |
| Multiple Foil Material Compatibility | Supports aluminum poly, polyester poly, paper poly, glassine foil, and more. |
| Adjustable Conveyor Height | Fits seamlessly into diverse production line setups. |
| Optional Safety Cabinet | Add-on: Toughened or polycarbonate safety enclosure for enhanced operator safety. |
Technical Specifications
| Machine Name | Automatic Bottle Aluminium Foil Sealing Machine |
|---|---|
| Model | TGBAFS-60 |
| Brand | Technogen Enterprise |
| Automation Grade | Fully Automatic |
| Output | 50–60 Bottles/Minute |
| Direction | Left to Right |
| No. of Sealing Heads | Single |
| Bottle Diameter | 20 mm to 70 mm |
| Bottle Height | 50 mm to 180 mm |
| Foil Plate Diameter | 325 mm |
| Foil Roll Core Diameter | 76 mm |
| Max Foil Roll Outer Diameter | 300 mm |
| Heater Type | 2 × Pin-Type Heaters |
| Electrical Requirement | 3 kW, 440V, 3 Phase, 50 Hz |
| Compressed Air Requirement | 6 Bar |
| Adjustable Conveyor Height | 800 mm to 850 mm |
| Machine Dimensions (L×W×H) | 1830 mm × 850 mm × 1575 mm |
Applications Across Kenya’s Growing Sectors
This machine is in high demand across several industries in Kenya, including:
Pharmaceutical Manufacturing Units in Nairobi and Mombasa
Agrochemical Packaging Plants in Thika, Machakos, and Naivasha
Food & Beverage Bottling Units in Kisumu, Nakuru, and Eldoret
Herbal Product Manufacturers in Ruiru and Kikuyu
Contract Packaging Units in Mlolongo and Syokimau
With its fast speed, smart controls, and compatibility with diverse foil types, this machine is perfectly suited for any business aiming to meet export packaging standards and regulatory requirements.
Why Choose Technogen Enterprise for Your Sealing Machine Needs?
Global Experience, Local Relevance – Trusted by customers across Africa, Asia & Europe
In-House Manufacturing – All machines are manufactured in our advanced facility in Ahmedabad
Customization Flexibility – We tailor machines to your bottle size, foil type, and line layout
Seamless Export Process – End-to-end documentation and logistics support for Kenyan importers
Post-Sales Support – Spare parts availability and technical assistance when you need it most
Ordering & Partnership Opportunities in Kenya
Whether you’re a direct buyer, a production line consultant, or a distributor looking to introduce premium sealing solutions in Kenya, we are happy to collaborate.
We serve and ship to major cities including:
Nairobi (Industrial Area, Ruaraka, Embakasi)
Mombasa (Free Trade Zones, Port Vicinity)
Kisumu, Thika, Machakos, Eldoret, and more
Let’s strengthen your packaging line together!
Request a Quote or Demo
Contact Technogen Enterprise today to receive a customized quotation or to schedule a virtual machine demo. We’ll be happy to understand your product requirements and suggest the best solution.
