Premium Ampoule Visual Inspection Machine For Kenyan Pharmaceutical Industry
Ampoule Inspection Machine Details

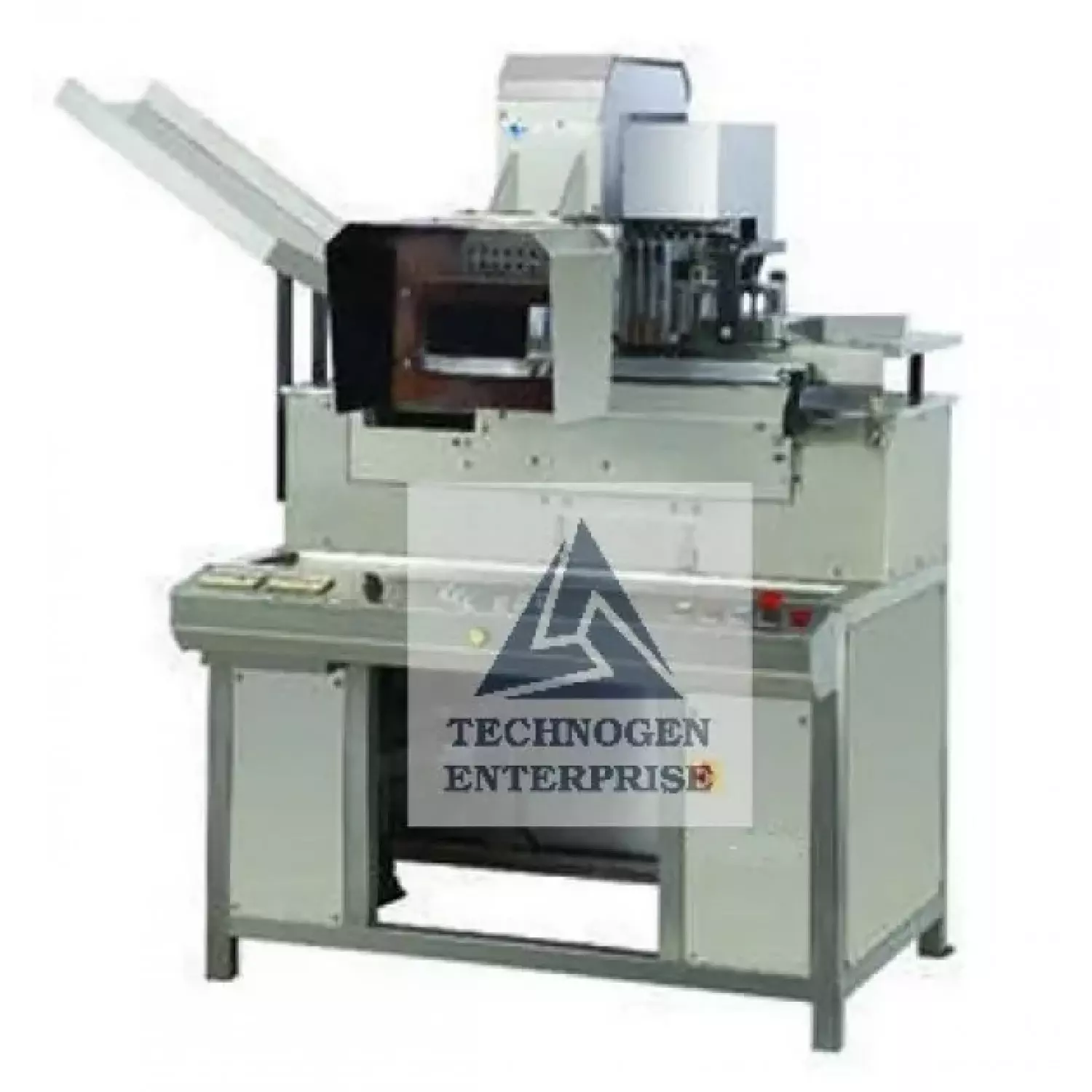

Technogen Enterprise introduces its advanced Ampoule Visual Inspection Machine – Model TGAIM-60, a semi-automatic solution specifically engineered for stringent pharmaceutical and injectable quality control processes. Designed to meet the demands of pharmaceutical manufacturing units across Nairobi, Mombasa, Kisumu, Nakuru, and Eldoret, this machine ensures accurate and efficient ampoule inspection with minimum human intervention.
This high-performance model is built with GMP standards, targeting foreign body detection such as glass shards, black particles, cracks, filter residues, and dirt inside ampoules. Technogen's machine sets a new benchmark for visual inspection in Kenya’s growing medical manufacturing sector.
Why Choose Technogen's Ampoule Visual Inspection Machine in Kenya?
As Kenya rapidly expands its pharmaceutical capabilities, there is an increasing demand for reliable, hygienic, and precise inspection systems. Technogen Enterprise, a reputed manufacturer and exporter from India, delivers on this need with its Semi Automatic Ampoule Visual Inspection Machine (Model TGAIM-60).
Whether you're in Nairobi's Industrial Area, Mombasa's EPZ, or Kisumu's pharmaceutical cluster, this machine is an ideal investment for injectable product lines focused on maintaining international quality benchmarks.
Key Features of the Ampoule Visual Inspection Machine
Technogen’s Ampoule Visual Inspection Machine is a blend of robust construction, user-friendly operation, and precision engineering, making it indispensable for pharmaceutical companies in Kenya. Let’s explore the key features:
1. CGMP-Compliant Compact Design
Fully compliant with Current Good Manufacturing Practices (CGMP).
Compact structure perfect for pharmaceutical units with space constraints in cities like Eldoret and Nakuru.
2. Premium Stainless Steel Build
All contact parts are manufactured using SS 304 grade stainless steel, ensuring maximum hygiene and corrosion resistance.
Machine exterior is finished in matte stainless steel, enhancing durability and cleanliness.
3. Six Spinning Assemblies for High-Speed Inspection
Equipped with 6 precision spinning heads, capable of inspecting up to 3600 ampoules per hour (based on operator skill and ampoule quality).
The spinning mechanism generates a vortex effect, bringing suspended particles into clear view for accurate detection.
4. User-Friendly Tray Loading System
Ampoules are easily loaded and unloaded via stainless steel trays.
Simplifies workflow, reducing fatigue and improving operator efficiency.
5. Separate Variable Frequency Drives (VFDs)
Independent VFDs for the main motor and ampoule spinners allow custom speed control, enhancing adaptability based on ampoule size and inspection time.
6. Precision Photoelectric Sensor with Star Wheel
Advanced reflex photoelectric sensor mounted in an aluminum star wheel ensures seamless ampoule separation.
Reduces chances of overlap or collision, improving throughput.
7. Dual Magnification Inspection
Features a 1.75X magnification lens, with up to 3X zoom in specific areas, allowing detailed visual inspection of every ampoule.
Real-time view of 6 ampoules simultaneously with bright backlit illumination.
8. High-Lumen Inspection Lamps
Comes with two 18W magnifying lamps, delivering 1800 Lumens of light—ideal for detecting minute particles and cracks in transparent liquids.
9. Smart Rejection and Repeat Cycle Features
Ejection switch allows for quick removal of defective ampoules.
Repeat cycle function enables multiple inspection passes for uncertain cases.
10. Dual Counter System
Integrated counters track both total output and rejections.
Facilitates accurate production reporting and quality analysis.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | TGAIM-60 |
| Operation Type | Semi-Automatic |
| Direction of Movement | Left to Right |
| Speed | 50-60 ampoules/min (depends on human efficiency) |
| Drive Control | Variable Frequency Drive |
| Ampoule Size Range | Diameter: 10-15 mm; Height: 55-125 mm |
| Ampoule Loading | Stainless Steel Tray |
| No. of Spinning Assemblies | 6 |
| Power Supply | 230V, 1 Phase, 50Hz with proper earthing |
| Power Consumption | 1.5 KW |
| Air Supply | 2 KG/CM² |
| Machine Finish | Stainless Steel Matte Finish |
| Dimensions (L x W x H) | 1600 mm x 1050 mm x 1600 mm |
| Net Weight / Gross Weight | 250 KG / 475 KG |
| Warranty | 1 Year from date of dispatch |
| Country of Origin | India |
Material of Construction
| Component | Material Used |
|---|---|
| Main Frame, Trays, Doors | AISI 304 Stainless Steel |
| Top Plate | Mild Steel + AISI 304 Cladding |
| Star Wheel, Hopper Gearbox | Aluminum |
| Cam | Cast Iron |
| Ampoule Holder | Brass + Aluminum |
| Spinning Gear | Nylon |
| Spinning Head | Mild Steel + AISI 304 Sheet |
| Chain Sprockets, Gears, Shafts | Mild Steel |
| Electrical Panel Box | AISI 304 |
Delivery & Ordering Details
| Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Production Capacity | 4 Machines per Month |
| Delivery Lead Time | 4 to 5 Weeks |
| Packaging Standard | ISBM-15 Compliant, Export-Grade |
| Nearest Seaport | Mundra Port, Gujarat, India |
| Payment Terms (International) | T/T or L/C |
| Product Code | TGAIM-60 |
Serving Kenya’s Top Pharma Zones
Technogen Enterprise proudly supports pharmaceutical companies across Kenya, especially in:
Nairobi – Industrial Area, Embakasi, Ruaraka
Mombasa – Shimanzi, Likoni, Changamwe
Kisumu – Oginga Odinga Industrial Park
Nakuru & Eldoret – Emerging pharma and biotech zones
Our ampoule inspection solutions help Kenyan manufacturers adhere to international regulatory standards, boosting their export competitiveness across East Africa and beyond.
Contact Us
For top-quality ampoule visual inspection systems in Kenya, get in touch with Technogen Enterprise today. Whether you're setting up a new production line or upgrading an existing one, our machines offer the reliability, speed, and precision you need to stay ahead in the pharma industry.
Serving Across Kenya: Nairobi | Mombasa | Kisumu | Nakuru | Eldoret
